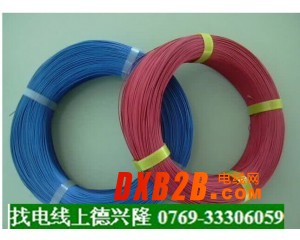

UL1569电子线说明书
|
聚乙烯绝缘电线 标准：UL758,1581
|
■产品说明 ■PRODUCT DEscriptION
●额定温度：105℃ ●Rated temperature：105℃
●额定电压：300V ●Rated voltage：300V
●参考标准：UL758,UL1581,CSA C22.2No.210.2 ●Reference standard：UL758,UL1581,CSA C22.2No.210.2
●导体使用单支或绞合32~16AWG镀锡或裸铜 ●Solid or stranded ,tinned or bare copper conductor 32~16AWG
●PVC绝缘，符合ROHS环保标准 ●PVC insulation ,comply with ROHS environmental standard
●通过UL VW-1、CSA FT1及JQA F-Mark阻燃测试 ●Passes UL VW-1,CSA FT1 and JQA F-Mark flame test
●绝缘厚度均匀、易裁线、易剥皮 ●Uniform insulation thickness to ensure easy stripping and cutting
●用于一般电子、电器设备内部连接线 ●For general purpose internal wiring of appliance
■产品结构图CABLE CONSTRUCTION
|
导体类型
|
导体
|
绝缘 |
最大导体电阻
（Ω/km,20℃,DC）
|
标准长度（FT/M）
|
|||
|
规格 AWG |
构造 (No./mm) |
外径(mm)
|
厚度
（mm）
|
外径 (mm) |
|||
|
绞合导体 |
30 |
7/0.1 |
0.3 |
0.41 |
1.12 |
354.24 |
2,000 |
|
28 |
7/0.127 |
0.38 |
0.41 |
1.20 |
223.75 |
2,000 |
|
|
26 |
7/0.16 |
0.48 |
0.41 |
1.30 |
139.73 |
2,000 |
|
|
24 |
11/0.16 |
0.61 |
0.41 |
1.43 |
93.30 |
2,000 |
|
|
22 |
17/0.16 |
0.76 |
0.41 |
1.58 |
55.00 |
2,000 |
|
|
20 |
26/0.16 |
0.94 |
0.41 |
1.76 |
34.60 |
2,000 |
|
|
18 |
41/0.16 |
1.18 |
0.41 |
2.00 |
21.80 |
2,000 |
|
|
16 |
26/0.254 |
1.49 |
0.41 |
2.31 |
13.70 |
2,000 |
|
|
单根导体 |
28 |
1/0.32 |
0.32 |
0.41 |
1.14 |
227.39 |
2,000 |
|
26 |
1/0.404 |
0.404 |
0.41 |
1.22 |
142.79 |
2,000 |
|
|
24 |
1/0.511 |
0.511 |
0.41 |
1.33 |
89.39 |
2,000 |
|
|
22 |
1/0.643 |
0.643 |
0.41 |
1.46 |
54.30 |
2,000 |
|
|
20 |
1/0.813 |
0.813 |
0.41 |
1.63 |
33.90 |
2,000 |
|
|
18 |
1/1.024 |
1.024 |
0.41 |
1.84 |
21.40 |
2,000 |
|
|
16 |
1/1.29 |
1.29 |
0.41 |
2.11 |
13.50 |
2,000 |
|
